mvpmc Microsoft Windows HowTo

John Honeycutt, honeycut@mvpmc.org

NOTE:

This HowTo only applies to earlier (non "H" revision) media mvp's.
ALL New users desiring to load the mediamvp software should first refer
to the mvpmc Getting Started wiki page.

1. Introduction

2. MediaMVP & mvpmc boot process

3. Windows Software

4. Obtaining the mvpmc software load and creating an initial config file

5. Setting up the DHCP Server

6. Testing the DHCP Server

7. Setting up the TFTP Server

8. Testing the TFTP Server

9. Setup and Test the Time Server

10. Verifying mvpmc

11. Configuring a Windows file share (CIFS server)

12. Enabling Logging in Putty Telnet Client

1. Introduction

From the mvpmc HOWTO by Robert Kulagowski:

The MediaMVP is a small, diskless Linux computer which obtains its operating system via TFTP. From the information page at http://www.hauppauge.com/pages/products/data_mediamvp.html:

"MediaMVP is a Linux based digital media receiver based on a powerful IBM PowerPC processor. It includes a hardware MPEG decoder to process digital video movies, while music and digital pictures are software decoded by MediaMVP's processor. It receives the digital media from a PC via an Ethernet LAN, decodes the media and outputs video through composite and S-Video connections, and audio through stereo audio output connectors."

The mvpmc project uses the MediaMVP hardware and replaces the software that the MediaMVP runs. Because the MediaMVP boots completely from the network, changes made to the software aren't permanent - you can always switch back to using the Hauppauge-supplied software with the Hauppauge supplied Windows server.

This HOWTO documents a proven method for installing (booting) the mvpmc application from a Windows 2K/XP host onto the Hauppauge MediaMVP Set-Top-Box

2. Non-H Revision Hardware MediaMVP & mvpmc boot process

Following is an overview of the MediaMVP boot process

• When power is applied to the MediaMVP the processor starts running its bootloader.
• The MVP's bootloader broadcasts a DHCP request over ethernet to get it's networking information, the boot servers IP address, and the name of the software file to download.
• After the DHCP response is received, the bootloader proceeds to tftp (download) its software load from the boot server.
• Once the MVP's bootloader completes tftp'ing the software load it exits the bootloader and starts executing the software load.

1. You NEED a DHCP server running on your Windows box.
   Note: The DHCP server listens for DCHP requests on the network. (i.e.: Your home LAN).
   The MediaMVP's DHCP request contains its Ethernet MAC address which uniquely identifies the MediaMVP to the DHCP server.
   (The MAC address is on a sticker on the bottom of the MediaMVP)
2. The DHCP server tells the MediaMVP what IP address to use and to request certain boot files from the TFTP server (see below).
3. You NEED to have a TFTP server running on your Windows box.
   The TFTP server sends the requested files to your MediaMVP AFTER it has a successfully received a DHCP responce from the DHCP server.
4. You NEED to have a TIME Server running on your Windows box or access to a TIME server on the internet.
   Note: AFTER your MediaMVP boots you MUST sync the time using a TIME Server so that it can play files from a ReplayTV.

1. The mvpmc software load file.
2. The mvpmc config file.
   NOTE: The config file is basically like an "autoexec.bat" file for the MVP. It is sent every time the MVP boots up. You can make a very simple one that just syncs the time and starts the mvmpc program. If you want you can also do things like mount windows file shares and other stuff. Note: The config file is the name of your software loadfile, with ".config" appended to it.
   e.g.: If your loadfile name is "dongle.bin.mvpmc" then the config file name is "dongle.bin.mvpmc.config"


3. Windows Software

Following are links to free utilities for booting and debugging mvpmc issues:

DHCP Server and TFTP Server:
http://www.weird-solutions.com/download/demo.html
Under the above links "Standard Server Software" section download "DHCP Turbo" and "TFTP Turbo". Both are free for personal use.

TIME Server:
http://www.adjusttime.com/
Download "Absolute Time Server". Free.
Note: You do not have to run a local TIME Server if your MediaMVP has access to the internet.
For example you can sync the MediaMVP's time to time.nist.gov with a line like the following in the config file:
"rdate -s 192.43.244.18" (More on this later)

Telnet Client:
A telnet client is used to access the mediamvp's command shell. (Similar to a DOS command shell under windows)
Setup instructions in this How-To require a telnet client to manually execute commands on the MediaMVP and verify that they pass. After initial setup the telnet client is no longer required.
If you don't have a favorite telnet client a good free one is "putty":
http://www.chiark.greenend.org.uk/~sgtatham/putty/

Windows Editor that supports saving text files in UNIX mode:
This is required for editing your mvpmc config file.
Note: the difference between unix and dos text files is that dos places carrage-return and linefeed characters at the end of each line where unix only places a linefeed at the end of each line.
The mediaMVP sometimes complains and does not function correctly if the config file is edited with an editor that does not support unix text mode.
Following are some editors that support unix text mode recommended by folks on AVS-Forum:
metapad (Freeware) Set unix mode: File-FileFormat-UnixText
win32pad (Freeware)Set unix mode: File-FileFormat-Unix
textpad (Shareware with unlimited evaluation period)Set unix mode: File-SaveAs-File Format-Unix

Network Analyzer:
A network analyzer is useful for debugging problems like the MediaMVP not receiving a DCHP response or not correctly downloading the software load.
You will probably never need to mess with this but the link is here just in case
If you don't have a network (packet capture) analyzer that you are familiar with I suggest "ethereal" which is free.
http://www.ethereal.com/
Download and install as described at:
http://www.ethereal.com/distribution/win32/

4. Obtaining the mvpmc software load and creating an initial config file

An initial config file can be obtained from the following link:
Link to example config file
For now just download the config file to your PC.
NOTE: You should use one of the editors listed in the "Windows Software" section when editing this file.
NOTE: Config file lines beginning with '#' are comment lines.

5. Setting up the DHCP Server

Setting up the DCHP server is by far the most difficult part of getting the MVP to boot. Hopefully this will streamline the process.

Pre-configuration:

1. The Windows box acting as a DHCP server (Running DCHP-Turbo) must be configured with a known (static) IP address.
   If you have a hardware router/firewall that acts as a DHCP server for serving IP addresses to your lan you need to configure it to always provide the same IP address to your windows box. If your router's DHCP server does not support static IP addresses then you will need to configure a static IP address for the windows box under windows networking.


2. Write down your MediaMVP's Ethernet MAC Address.
   The mac address is on a white sticker on the bottom of the MediaMVP.
   The sticker will look like "MAC 000DFE009200". This corresponds to MAC address 00:0D:FE:00:92:00.


3. If you have a hardware router/firewall that acts as a DHCP server for serving IP addresses to your lan you need to add the MediaMVP's MAC address to the routers "exclude" list.
   i.e.: You don't want your router/firewall responding to the MediaMVP's DHCP request. If your router's DHCP server does not support excluding specific MAC addresses then the router's DHCP server will need to be disabled.


4. The DHCP protocol uses UDP port 67 and UDP port 68. If you have a software firewall running on your windows box you will need to open up UDP port 67 and UDP port 68.


5. Determine the following information that will be required when setting up the DHCP server:
   • Windows Box's IP address
   • Your lan's subnet mask
   • Your lan's broadcast address (ends with .255)
   • Your lan's gateway address
   • IP address you want to assign to the MediaMVP
   • Hostname you want to assign to the MediaMVP
   • mvpmc software load name
     NOTE: The mvpmc software load name is the file you downloaded earlier.
     eg: dongle.bin.mvpmc-0.1.8


   Following is my lan configuration which is used in the "DHCP Turbo" configuration example.
   Note: I have two MediaMVP's One is used for development and the other runs a stable mvpmc software load
   My lan is setup as 172.31.1.xxx.
   • Windows Server IP address: 172.31.1.5
   • Subnet mask: 255.255.255.0
   • Broadcast address: 172.31.1.255
   • Gateway address: 172.31.1.1
   • MediaMVP#1 IP Address: 172.31.1.12
   • MediaMVP#1 Hostname: media_mvp1
   • MediaMVP#1 SoftwareLoad: dongle.bin.mvpmc
   • MediaMVP#2 IP Address: 172.31.1.14
   • MediaMVP#2 Hostname: media_mvp2
   • MediaMVP#2 SoftwareLoad: dongle_mvp2.bin

1. Install DHCP Turbo.
   In addition to the program setup also installs a pdf "DHCP Turbo Administrators Guide" Make sure to read through section 2.2.
2. Start DHCP Turbo.

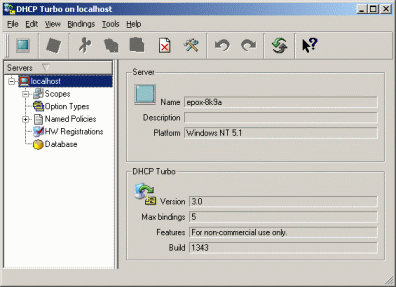

   When the application comes up double-click the "localhost" server and login. (No password is required).
   The screen should look similar to the following.

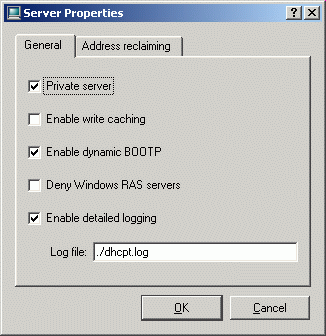

3. Right click "localhost" and select properties.
   Enable "private server" and "detailed logging"




4. Setup Global Policies
   Global Policies are DHCP parameters that are common to all DHCP clients.
   i.e.: Server Address, Subnet Mask, and Broadcast Address.
   To add Global Policies: Expand the "Named Policies" entry. Next, Right-Click "Global" and select "New Option".
   Add the following options:
   • standard option #1 "subnet mask"
   • standard option #28 "broadcast address"
   • standard option #3 "gateways"
   • server control option #-14 "next server" (This is your windows box's IP address)

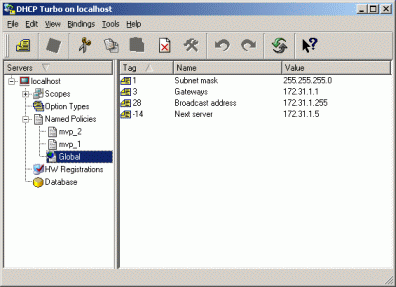

   Following is a capture of my global options.




5. Create a "Named Policy" for each MediaMVP's specific parameters.
   i.e.: boot file name, and hostname
   To create a new "Named Policy": Right-Click "Named Policies" and select "New Named Policy".
   Give the policy a name such as "mvp_1".
   Next, add your options to the named policy, by right-clicking the named policy you just created and selecting "New Option".
   Add the following options:
   • standard option # -1 "Boot file" (This is the name of the mvpmc software loadfile)
   • standard option #12 "Hostname"

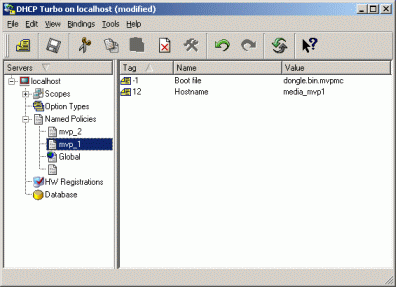

   Following is a capture of my mvp_1 options.




6. Add MediaMVP Ethernet MAC and IP address to DHCP-Turbo database
   This is where the IP address gets assigned to the MediaMVP's Ethernet MAC.

   Right-Click "Database" and select "New Reservation".
   a.: Enter you MediaMVP's MAC address and the IP address you want to assign.
   b.: Check the "Policies" box and then click "...".
   Add the named policy (e.g mvp_1) that you created earlier to the "Defined Policies" list.

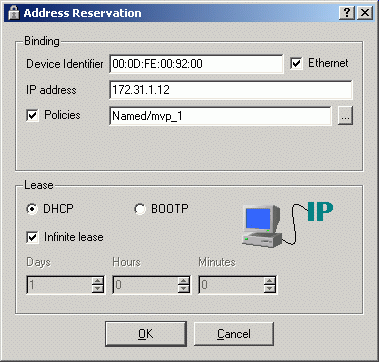

   Following is a screen shot from my setup




7. Add the MediaMVP's MAC address to the "HW Registrations" list
   This is where we tell DHCP-Turbo to respond to DHCP requests from a specific MAC address.
   Right-Click "HW Registrations" and select "New HW Registration".
   Enter the MediaMVP MAC address and a comment.

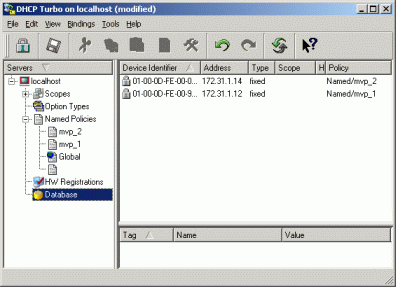

   Screen shots of completed "Database" & "HW Registration"




8. Save the DHCP-Turbo configuration
   i.e. File -> Save


9. Make sure the Server is started
   i.e. Tools->ControlService->Start


6. Testing the DHCP Server

Unplug and reconnect the MediaMVP's power adaptor
Messages at the bottom of the screen should cycle through:

• Checking Ethernet Connectivity...
• Contacting DHCP Server...
• Loading Application...

7. Setting up the TFTP Server

1. Install TFTP Turbo.
   In addition to the program setup also installs a pdf "TFTP Turbo Administrators Guide" Make sure to read through section 2.3.

   NOTE: The tftp protocol uses UDP port 69. If you have a software firewall running on the windows box you will need to to open up UDP port 69.


2. Start TFTP Turbo.

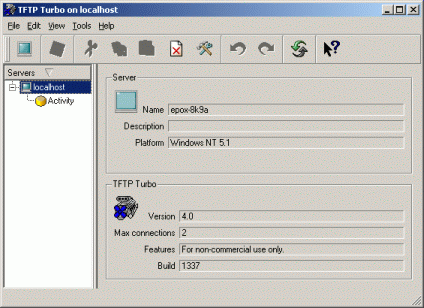

   When the application comes up double-click the "localhost" server and login. (No password is required).
   The screen should look similar to the following.

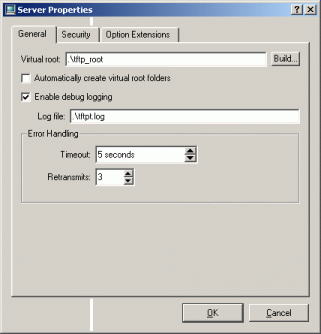

3. Right click "localhost" and select properties.
   Enable "detailed logging"
   NOTE: If you have a software firewall running on your windows box you will also need to go to the TFTP Turbo properties->security tab and enable using a specific "Firewall Port". (Be sure to open the port on your firewall)



4. Save the TFTP-Turbo configuration
   i.e. File -> Save


5. Make sure the Server is started
   i.e. Tools->ControlService->Start


8. Testing the TFTP Server

• Copy the mvpmc loadfile you downloaded earlier to the < TFTP Turbo install dir >/tftp_root directory.

• Rename the example config file you downloaded earlier as: "< mvpmc loadfile name > .config"
  e.g: If the loadfile is "dongle.bin.mvpmc-0.1.8" then you should rename the example config file to be "dongle.bin.mvpmc-0.1.8.config"

• Using one of the unix mode editors edit the renamed config file to comment out the commands in the config file's section 2 and section 4.
  i.e.: Put a '#' at the start of the following two lines


  rdate -s $SERVER;
  mvpmc -R "ip=discover" -t /usr/share/mvpmc/replaytv.xml &


  The config file now has a ton of comments and 2 lines that actually get executed to set the timezone to EST.:

  TZ=EST+5EDT,M4.1.0/2,M10.5.0/2; export TZ;
  echo "TZ=EST+5EDT,M4.1.0/2,M10.5.0/2; export TZ" > /etc/shell.config;


• Cycle power to the MediaMVP.
  You should see the MVP screen cycle through:
  • Checking Ethernet Connectivity...
  • Contacting DHCP Server...
  • Loading Application...

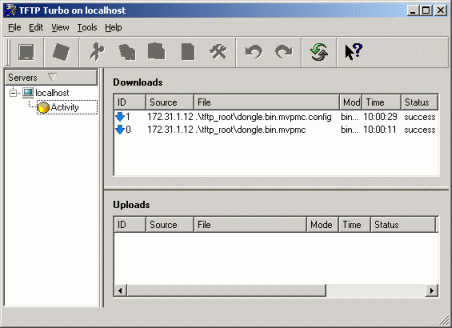

  Next, you should be able to see the files being downloaded from the TFTP-Turbo "Activity" window as shown below.



  Once the downloads complete the TV screen should go blank.
  NOTE: If you don't see the files download then:

  • Check the TFTP-Turbo log file for problems: The log file is < TFTP Turbo install dir >/tftpt.log
    If there is not a log entry for either the load file or config file then you probably have a firewall issue or the DHCP Server may have not correctly set the "Next Server" IP address to point to your windows box.
    In either case using ethereal to capture packets for the boot process should help isolate the issue.


• telnet to the MediaMVP and confirm it booted properly.
  Using "putty" or your favorite telnet client, telnet to the MVP's IP address.
  You should get a prompt similar to the following:

  Welcome to MediaMVP!
  media_mvp1 login:


• Enter "root" to login.

• Enter the "date" command.

• Enter the "env" command
  Output should be as follows:


  media_mvp1 login: root

  BusyBox v1.00 (2005.02.11-01:05+0000) Built-in shell (ash)
  Enter 'help' for a list of built-in commands.

  # date
  Wed Dec 31 19:05:02 EST 1969

  # env
  USER=root
  HOME=/
  LOGNAME=root
  TERM=vt102
  PATH=/usr/sbin:/bin:/usr/bin:/sbin
  SHELL=/bin/sh
  PWD=/
  TZ=EST+5EDT,M4.1.0/2,M10.5.0/2
  #



  Note the date is 1969 or 1970.
  Also, the "env" command output shows the "TZ" variable correctly set.


• Enter "exit" to quit.


9. Setup and Test the Time Server

1. Install and start the "Absolute Time Server".
   NOTE: "Absolute Time Server" supports two different time server protocols. These are RFC-868 (TIME) server and a RFC-2030 (SNTP) server.
   For the MediaMVP we need the RFC-868 (TIME) server.
   WindowsXP-Pro also starts it's own SNTP time server. So, if you get a winsock error when starting "Absolute Time Server" just disable Absolute's SNTP server using the GUI's checkbox.


2. Telnet to the MVP and login.


3. Enter: rdate < Server IP Addr >
   Enter: date
   The date should be set correctly. Example output below.


   # rdate 172.31.1.5
   Sun Feb 20 12:19:33 2005

   # date
   Sun Feb 20 12:19:35 EST 2005


10. Verifying mvpmc

# mvpmc -R "ip=discover"

11. Configuring a Windows file share (CIFS server)

ValueName:      SizReqBuf
DataType:       REG_DWORD
Value(Decimal): 33000

mkdir /win_files;
mount.cifs //172.31.1.1/file_share /win_files/ -o password=guest,rsize=34000;

mkdir /cifs_share;
mount.cifs //172.31.1.1/file_share /win_files/ -o user=thewindowsuserid,password=thepassword,rsize=34000;

12. Enabling Logging in Putty Telnet Client

Sometimes it is useful to capture a telnet session's I/O. The following details how to enable logging for the putty telnet client.

1. start putty
2. under left side category: 'session' select 'logging'
3. select 'log printable output only'
4. Change the log file name & path to whatever you like.
5. under left side category: select 'Session'
6. Enter your mvp's IP address
7. Select Protocol 'telnet'
8. For 'Saved Sessions' enter a name like 'mvp_logged'
9. Click 'save'



   You should now have a 'mvp_logged' profile in your list of saved sessions.
   Double click 'mvp_logged' to start putty & connect to the mvp.
